LYNCCN WAY100.84 V12 Single V Die Press Brake Tooling
| Plaats van herkomst | Anhui, China |
|---|---|
| Merknaam | LYNCCN |
| Certificering | ISO9001 |
| Modelnummer | Way100.84-V12 |
| Min. bestelaantal | 500 mm*3 stcs |
| Prijs | Onderhandelbaar |
| Verpakking Details | Houten doos |
| Levertijd | Onderhandeling |
| Betalingscondities | T/t |
| Levering vermogen | 500 stuks per maand |
Neem contact met me op voor gratis monsters en coupons.
WhatsAppen:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Productnaam | Druk op remgereedschap enkele V Die | V-opening | V12 |
|---|---|---|---|
| Materiaal | 42crmo | Hoek | 84 ° |
| Hardheid | HRC50 ± 2 | Breedte | 25 mm |
| Warmtebehandeling | Inductie verharding | Hoogte | 120 mm |
| Verpakking | Houten doos | Max. Laden | 100t/m |
| Markeren | Press Brake Die custom,Single V Press Brake Die,Single V Die Press Brake Tooling |
||
Productomschrijving
Product Description:
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

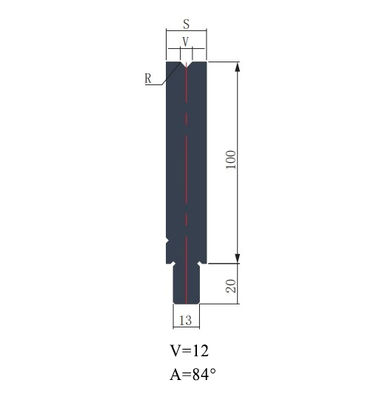

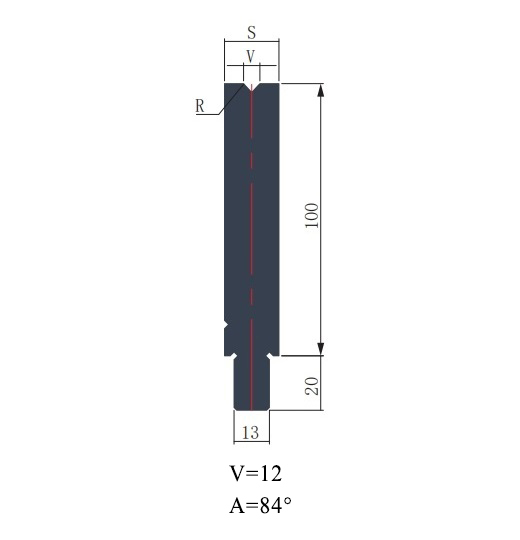

Technical Parameters:
| Product Type | Single V Die |
| V-opening | V12 |
| Angle | 84° |
| Height | 120mm |
| Width | 25mm |
| Material | 42CrMo |
| Hardness | HRC50±2 |
| Heat Treatment | Induction Hardening |
| Length | 550mm/500mm |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Our hydraulic CNC press brake punches are suitable for a variety of application occasions and scenarios. They are commonly used in metalworking and fabrication industries for bending and shaping metal sheets. Our products are compatible with a range of press brake machines and are widely used in industries such as aerospace, automotive, construction, and shipbuilding.
