LYNCCN WAY100.84 V16 Euro Type V Die Press Brake Tooling Custom
| Plaats van herkomst | Anhui, China |
|---|---|
| Merknaam | LYNCCN |
| Certificering | ISO9001 |
| Modelnummer | Way100.84-V16 |
| Min. bestelaantal | 500 mm*3 stcs |
| Prijs | Onderhandelbaar |
| Verpakking Details | Houten doos |
| Levertijd | Onderhandeling |
| Betalingscondities | T/t |
| Levering vermogen | 500 stuks per maand |
Neem contact met me op voor gratis monsters en coupons.
WhatsAppen:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Productnaam | Eenvoudige V-drukremwerktuigen | Materiaal | 42crmo |
|---|---|---|---|
| V-opening | V16 | Hardheid | HRC50 ± 2 |
| Hoek | 84 ° | Warmtebehandeling | Inductie verharding |
| Breedte | 30 mm | Verpakking | Houten doos |
| Hoogte | 120 mm | Max. Laden | 100t/m |
| Markeren | Euro Custom Press Brake Tooling,V Die Custom Press Brake Tooling,Custom V Die Press Brake Tooling |
||
Productomschrijving
Product Description:
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

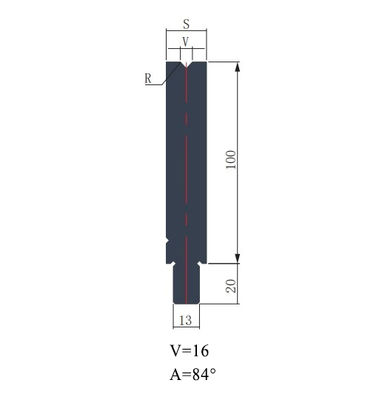

Technical Parameters:
| Product Type | Single V Die |
| Angle | 84° |
| V-opening | V16 |
| Width | 30mm |
| Height | 120mm |
| Material | 42CrMo |
| Hardness | HRC50±2 |
| Heat Treatment | Induction Hardening |
| Length | 550mm/500mm |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Our hydraulic CNC press brake punches are suitable for a variety of application occasions and scenarios. They are commonly used in metalworking and fabrication industries for bending and shaping metal sheets. Our products are compatible with a range of press brake machines and are widely used in industries such as aerospace, automotive, construction, and shipbuilding.
